PowerRack-8.5 to -66
PowerRack 8.5 to PowerRack 66For detached houses and apartment buildings and small businesses - nominal capacities from 8.5kWh to 66kWh5kW to 18kW charging/discharging capacityThanks to the special BMS, our storage tanks can be expanded almost indefinitely. All of our battery storage systems are capable of emergency power. 1-phase or 3-phase - just as you wish The PowerRacks-8.5 to -66 contain new CATL Li-ion modules
Inexpensive solar power for all residential buildings and commercial enterprises. Optimal operation on a solar system from 0.5kWp to 50kWp.
With the PowerRack, you can supply yourself with your solar energy independently for many months of the year.
The excess solar energy during the day is stored and used in the evening and at night.
In addition, consumption peaks are capped during the day. If the solar yield is currently not sufficient, energy is added from the storage.
The PowerRack can be used with any existing solar inverter. Your new battery and the new battery storage have no points of contact with the existing solar system. Easy to retrofit in any household or commercial enterprise.

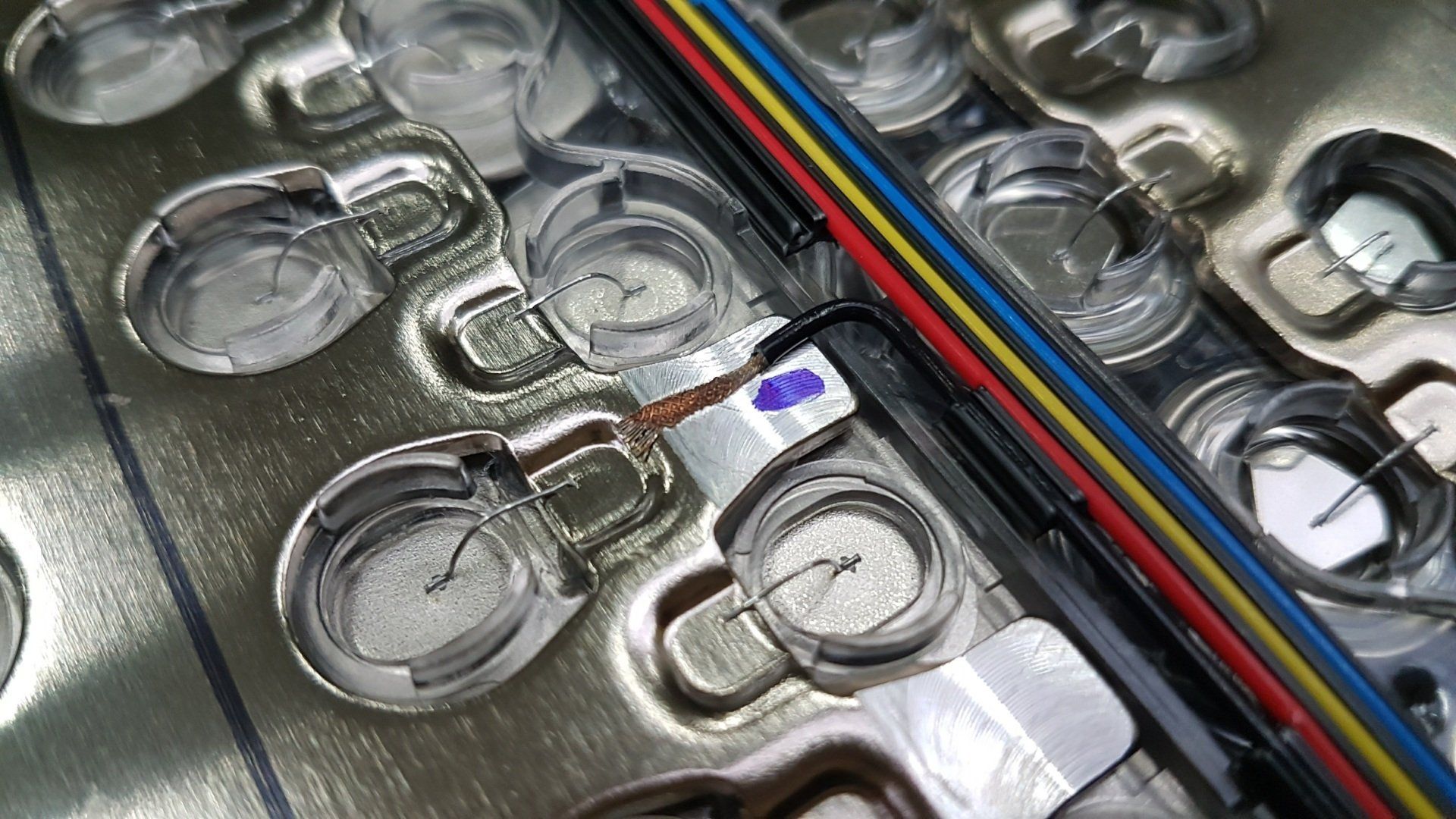

PowerRacks product line with new CATL Li-ion battery modules. The height and width remain the same for all expandable PowerRacks. The additional battery modules all find space in the housing.
Below are some typical solutions

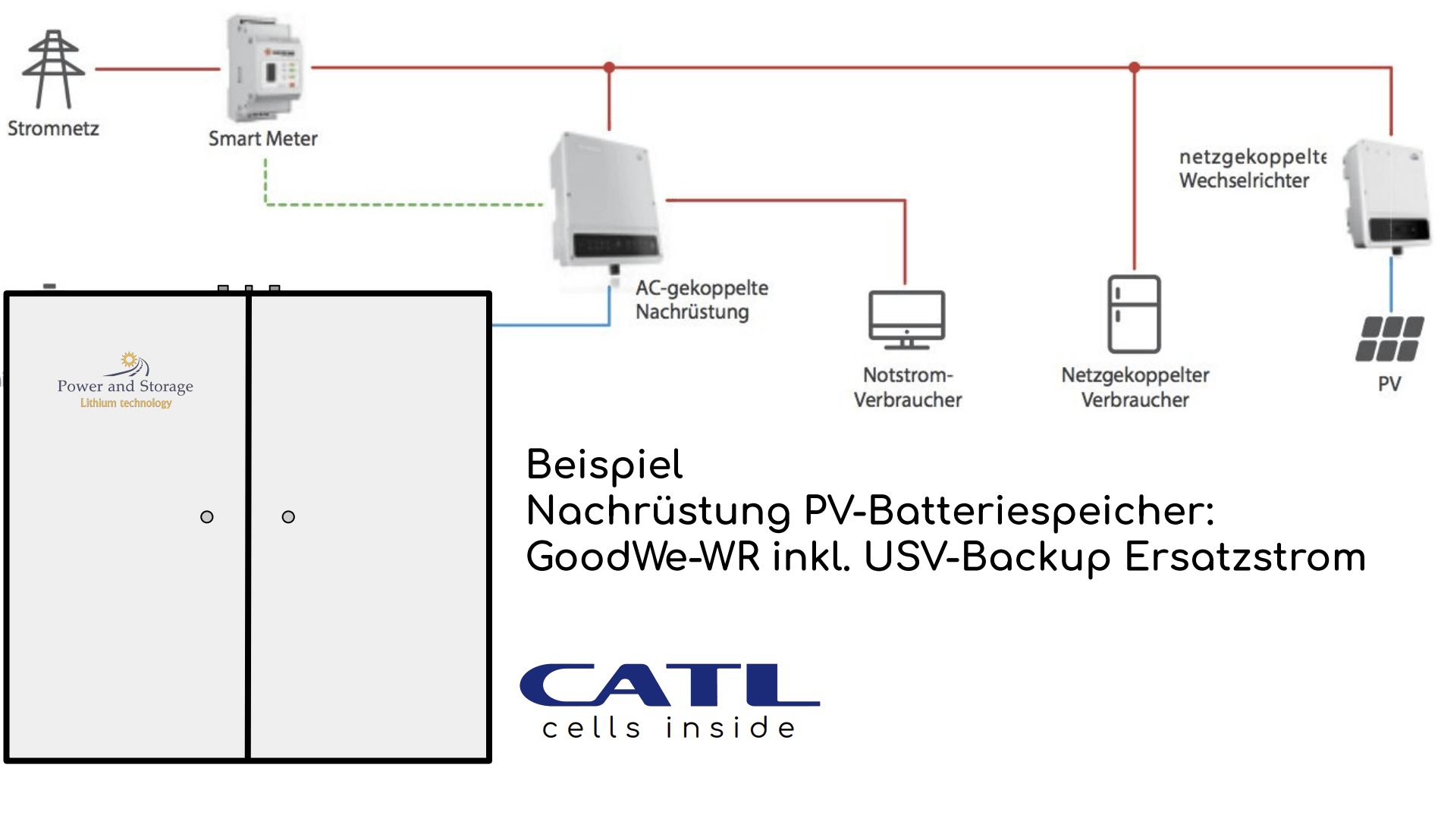

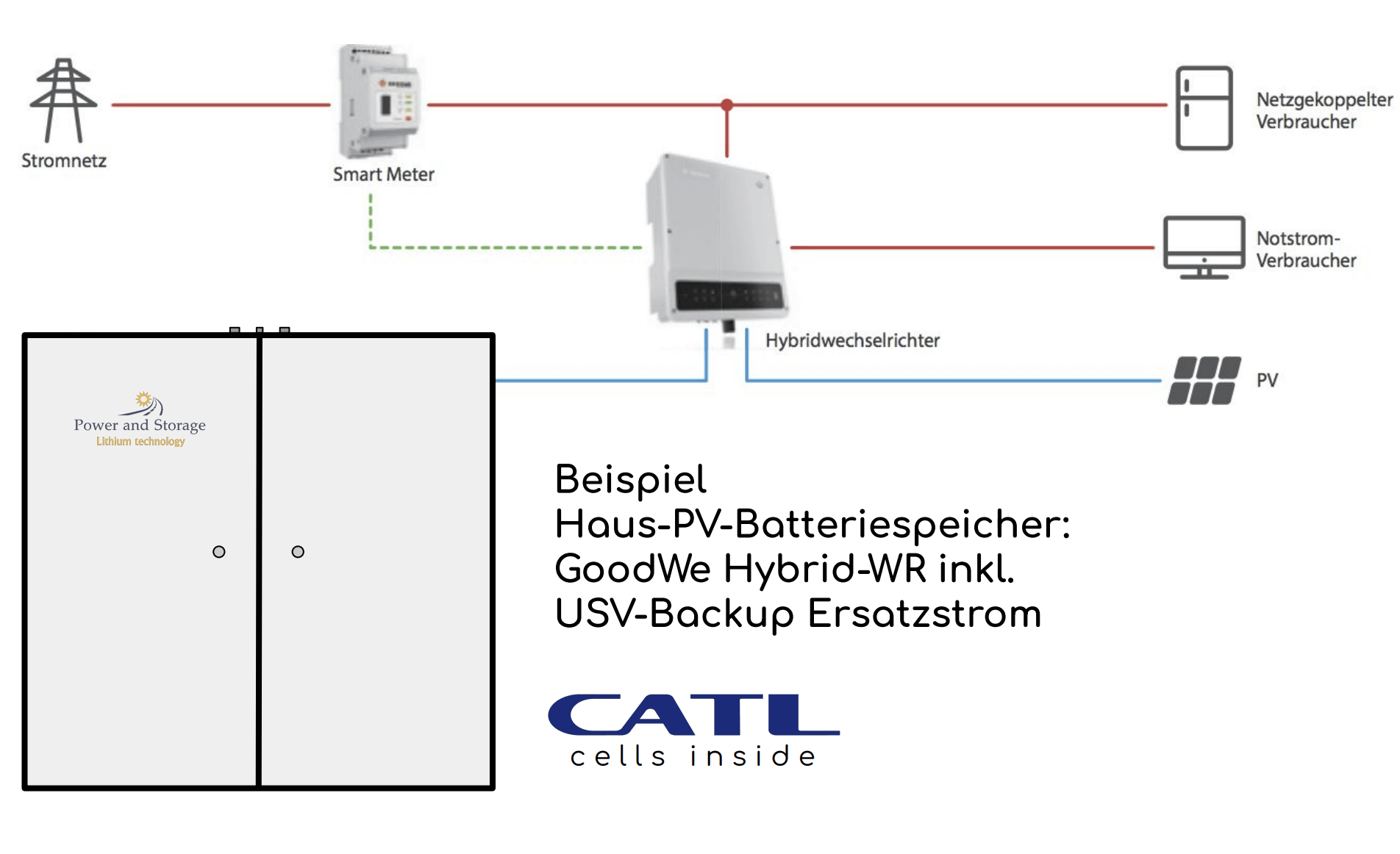

Emergency or backup power capability for Victron and GoodWe inverters ex works without additional devices, for SMA with an Enwitec backup box.
Designed for operation with 1 or 3 SMA Sunny Island, 1, 2 or 3 Victron Energy inverters, a GoodWe 48V hybrid and GoodWe 48V inverter, Solax, Studer, Solis etc. or any other inverter .
Compared to the TESLA PowerWall, it can be expanded in a modular way and equipped with more power!

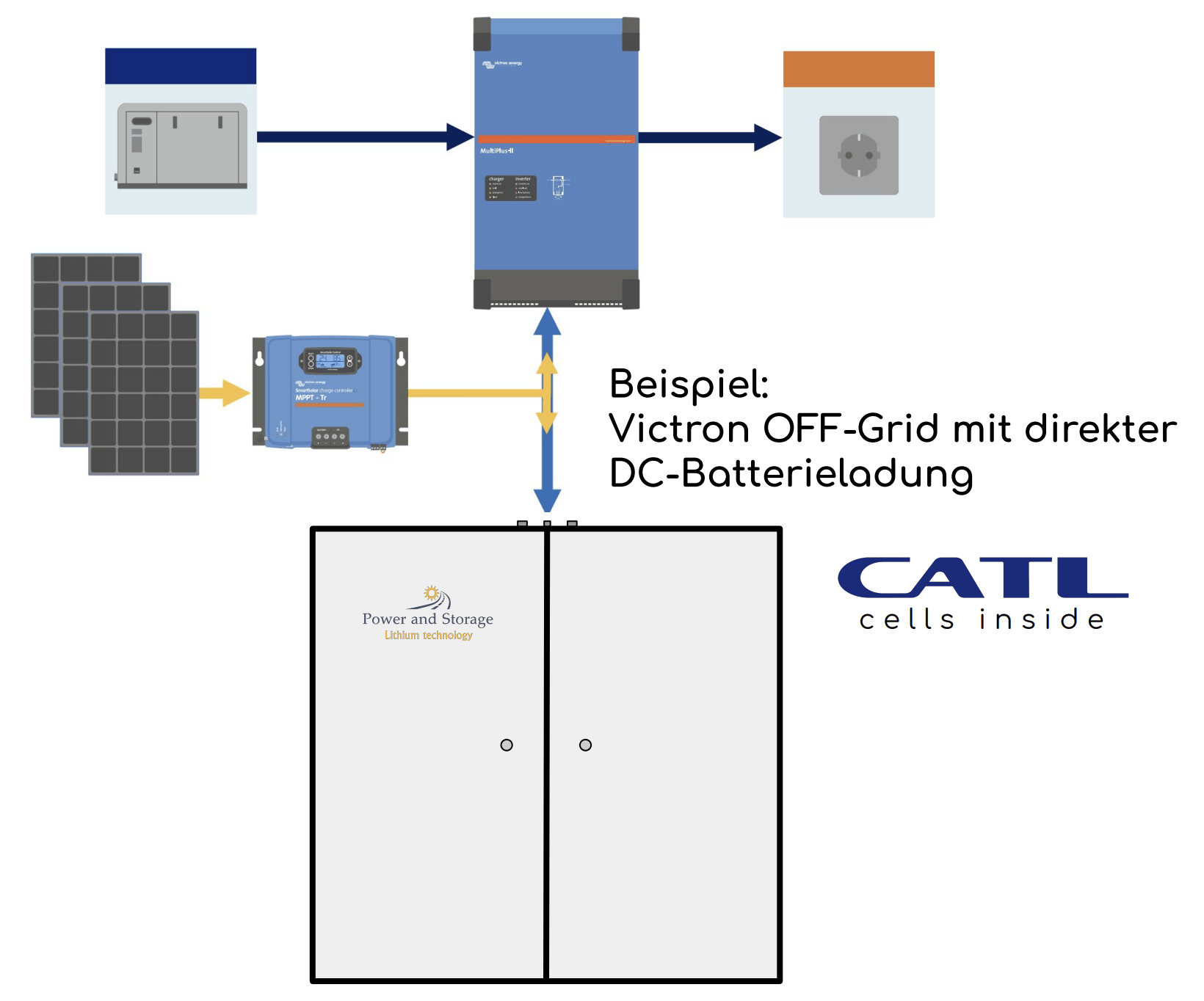

The following arrangement with direct DC charging from the solar system can also be implemented grid-connected.
As an intelligent central organ, an energy meter monitors all three phases of the house connection as a balancing counter and power meter. It also provides the visualization on the web portal of the WR manufacturer, so that the current energy flow can be displayed on the PC and all mobile devices. Extensive statistics and visualizations can be called up in the portal. In the excerpts below from the extensive visualizations, the energy flows within the system are shown as an example for battery charging and discharging.
FORECAST-BASED BATTERY CHARGE
With modern battery storage systems based on lithium, you are able to significantly increase your degree of self-sufficiency from the solar system over decades. In this way, you significantly reduce your energy purchase costs. Trademark Notice: CATL® is a trademark of Contemporary Amperex Technology co. Limited No.1 Xingang Road,Zhangwan Town,Jiaocheng District,Ningde City, Fujian Province, PR of China,352100 - TESLA® is a trademark of Tesla, Inc, 45500 Fremont Boulevard, Fremont, CA 94538
